Zendesk App Display


  • You should already have created a Flow.
  • It's best if you've already captured real data in the Flow's trigger and have generated output data with the preceding node.

In this article we're looking at:

Like most nodes, the Zendesk App Display node is divided into two main areas. The larger area on the left is for creating the template itself and the Preview box on the right shows you a preview of the template in Zendesk Support, in Zendesk Chat or in Zendesk Sell.

Overview of the Zendesk App Display node

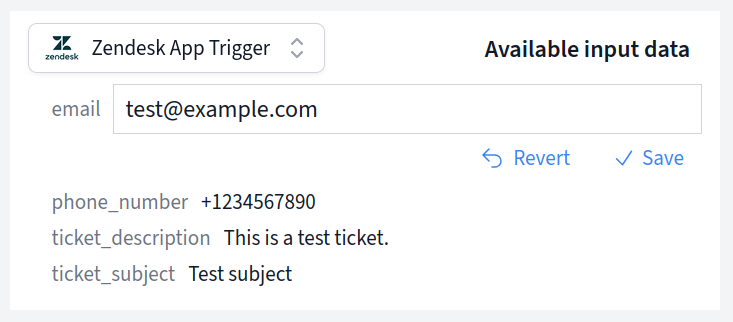

Test input data

Most nodes use dynamic data somewhere (more on using placeholders for dynamic data in the using placeholders section below) and so it's essential to try out your node with input data.

The Input data is simply valid JSON and you can change its values however you like.

You want to simulate the data this node would receive from its previous node. So, ideally you would first capture a real request in the trigger, set up the next node (e.g. query an API or a database), any other nodes you'd want to run and then inherit its output data here.

To inherit the test outputs from the previous node, click Edit next to the Input data title and then click on inherit outputs from previous node. Your test input will be updated with the outputs of the previous node or trigger.

Generating an HTML template

When the template editor on the left is completely empty, the button Generate template" will appear below the Input data* on the right.

Clicking this button will generate a template from your test input data. This works magically, when your input data is either a simple object that only contains properties or an array of such objects. If your input data is nested or complicated in another way, you might have to write your own HTML code.

But before we look into building templates, let's explore how to include dynamic data in your templates by using placeholders.

Using placeholders

To dynamically insert data in your template, you can use placeholders. In HTML templates we use a different syntax to other nodes: Variables don't have a $ prefix and you can output their values by surrounding a variable with double curly brackets:

{{ data }}

Like in all nodes, the input data to this node are stored in the variable data and you access the values themselves using the dot property syntax. Let's say your node receives the following data from the previous node or the trigger:

  "id": 123,
  "email": "",
  "full_name": "Alice Appleseed",
  "name": {
    "first": "Alice",
    "last": "Appleseed"

To dynamically insert the email address in your template, write:

{{ }}

Or to output the first name:

{{ }}

Building your own HTML template

If auto-generating a template didn't give you the desired results, you can adapt the template or you might prefer to write your own template altogether.

There are a few CSS classes that you can use to style your template in the "standard" FactBranch style.

For a standard label-value output, use the following HTML code (for example to display the property full_name from your test input data):

<div class="c_fbzd_item">
  <div class="c_fbzd_item__label">Full name</div>
  <div class="c_fbzd_item__value">{{ data.full_name }}</div>

Templating basics

The template is normal HTML code, except that you can't use <script>, <html> or <body> tags. Your template will be included inside an HTML document, so there is no need for a surrounding <body> tag.

Dynamic parts are surrounded by curly brackets. But there are two variants:

  • {{ }} Double curly brackets will output the results of whatever you put inside the curly brackets. Here it will output the value of You could also use simple expressions like {{ 1 + 1 }}, which will output 2 of course.

  • {% ... %} This syntax is for control structures like if or for.

If you are familiar with Liquid or Jinja2, you will recognize this templating syntax and feel at home.

Adding an expandable/collapsible box

The FactBranch app is often displayed in a sidebar and so space is limited. But what if you'd like to display lots of data? The collapsible item is our solution to this problem.

This makes organizing the view easy and is perfect for displaying a list of most recent orders or all transactions of your customers.

The collapsible is a single item that displays multiple result fields at once. Your input data has to reflect that. You can either supply an object or an array of objects to the collapsible.

Let's say your input data to the Zendesk App Display node look like this:

  "customer_name": "Alice Example",
  "orders": [
    {"id": "#123456", "summary": "9 items", "status": "returned", "total": "117.93$"},
    {"id": "#234567", "summary": "6 items", "status": "shipped", "total": "177.27$"},
    {"id": "#345678", "summary": "1 item", "status": "delivered", "total": "29.99$"},
    {"id": "#456789", "summary": "12 items", "status": "delivered", "total": "231.14$"}

With this data structure we can generate collapsibles for every order using the following template code:

    ['summary', 'status'],
    ['summary:Summary', 'status:Status', 'total:Total']

Let's take this apart line-by-line:

First, with data.orders|collapsible you tell FactBranch that you want to work with the list of orders from your input data and apply a filter called collapsible. This filter actually generates the gray boxes that expand when clicked.

The collapsible-filter takes three arguments: the property to use as the title, the properties to show when collapsed and the properties to show when expanded.

The properties for the expanded view have an optional syntax that we're using: 'property_id:Custom label to display'. This way you tell FactBranch which field to use and after the colon which label to display.

Here is the complete example in FactBranch:

How to configure a collapsible in FactBranch

And in Zendesk it will look like this:

The resulting collapsibles in the FactBranch Zendesk app

Looping through an array (lists, tables)

You can also use for-loops in your template. Because the for itself is a statement, surround it with {% %}. First, here is test input data containing an array:

  "customers": [
    {"name": "Alice", "email": ""},
    {"name": "Bob", "email": ""},
    {"name": "Carla", "email": ""},
    {"name": "Dan", "email": ""}

To display these email addresses in a list, use the following snippet in your template:

  {% for item in data.customers %}
    <li>{{ }}</li>
  {% endfor %}

Building a table

To build a nice and compact table we can use a for loop and a CSS class provided by FactBranch:

<table class="c_fbzd_table">
  {% for row in data.customers %}
      <td>{{ }}</td>
      <td>{{ }}</td>
  {% endfor %}

Adding an if statement

To display different content depending on the data we receive, we can use an if/elif/else statement. elif is short for "else if" and alows you to add more conditions if the previous conditions are not met. For example to display an error message if there was an error or a nice message if the customers array was empty we could simply do this:

{% if data.customers %}
  ... list the customers here ...
{% elif data.error_message %}
  <p style="color: crimson;">{{ data.error_message }}</p>
{% else %}
  <p>No customer found</p>
{% endif %}

The if first checks if the customers array contains entries - if not, it will check if there is an error_message - and if not, it will display the notice that no customers were found.

Renaming the node

To rename the node, either click on Rename next to the title, or double-click on the title itself. Then enter the new name and click on Save or hit Enter on your keyboard. To revert to the old name, hit the Escape key.

Above the Input box you find the quick navigation through the Flow. Use this to get to the previous or the next node.
