Webhook

A webhook trigger allows you to use FactBranch as an endpoint for external services to send data to. When your external service sends a POST request to your FactBranch webhook URL, it triggers your Flow and processes the incoming data through your data pipeline.

This is perfect for real-time data processing, integrating with third-party services, or building automation workflows that respond to external events.

In this article you'll learn:

Creating a webhook trigger

When you create a new Flow in FactBranch, you can select "Use FactBranch as a webhook" as your trigger type. This creates a Flow with a webhook trigger that:

• Provides you with a unique webhook URL
• Generates a secure Bearer token for authentication
• Accepts HTTP POST requests with JSON payloads
• Passes the incoming data to your Flow's first node

Setting up your webhook endpoint

After creating a Flow with a webhook trigger:

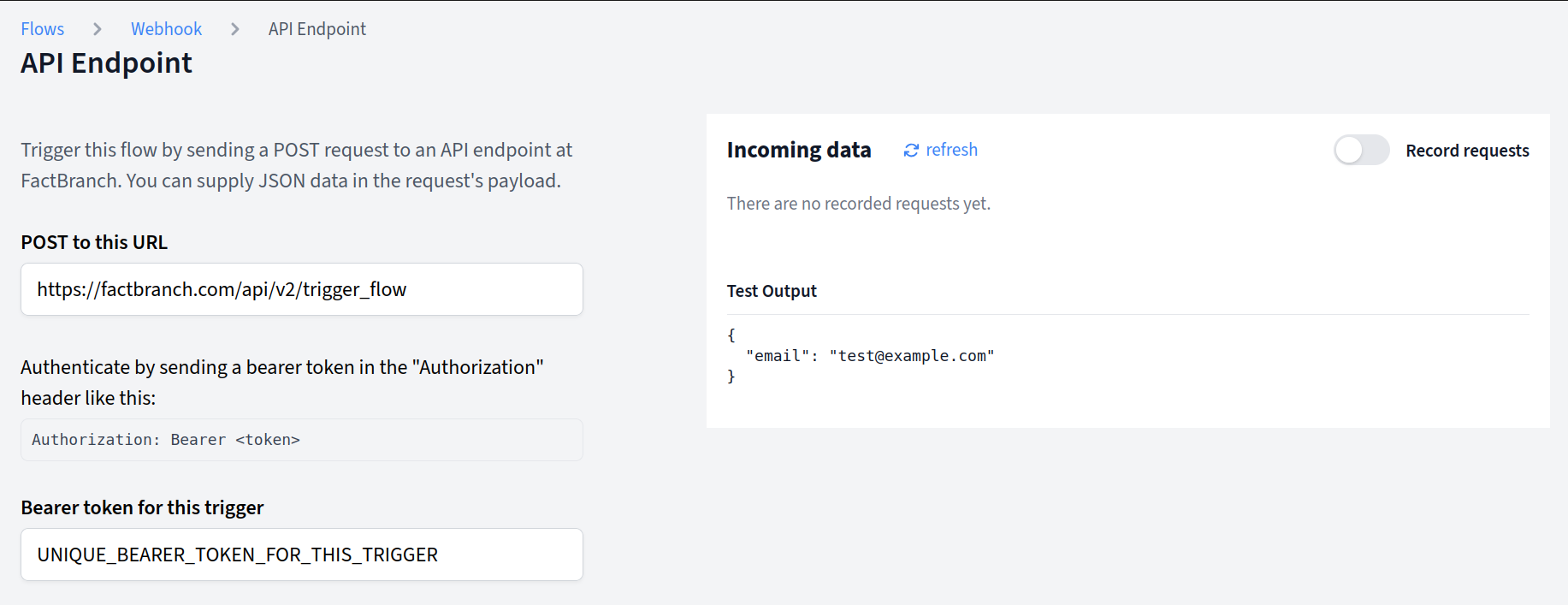

1. Click Config next to the trigger block in your Flow
2. You'll see your unique webhook details:
3. Webhook URL - The endpoint to send POST requests to
4. Bearer Token - Used for authentication (include in Authorization header)
5. Content-Type - Must be application/json

Copy these details to configure your external service.

Configuring external services

To send data to your FactBranch webhook, configure your external service to make HTTP POST requests:

URL: Your unique webhook URL from the trigger config page

Method: POST

Headers:

Authorization: Bearer YOUR_BEARER_TOKEN
Content-Type: application/json

Body: Valid JSON data that you want to process in your Flow

Example request

curl -X POST https://api.factbranch.com/webhooks/your-unique-id \
  -H "Authorization: Bearer your-bearer-token" \
  -H "Content-Type: application/json" \
  -d '{
    "customer_id": "12345",
    "event": "order_created",
    "order": {
      "id": "ord_987654",
      "total": 199.99,
      "status": "pending"
    }
  }'

Testing your webhook

Recording incoming requests

To test your webhook and capture real data:

1. In the trigger config page, activate Record requests
2. Send a test request from your external service
3. Click reload in the Incoming data section
4. You should see your test request appear in the list

Using test data

1. Click on a recorded request to view its content
2. Click Use as test data to use that data for testing your Flow
3. Deactivate Record requests when you're done testing

This test data will be used when you run individual nodes in your Flow during development.

Common use cases

E-commerce integrations

Process order events from your online store:

{
  "event": "order.created",
  "order_id": "12345",
  "customer_email": "customer@example.com",
  "total": 149.99
}

Form submissions

Handle contact form submissions from your website:

{
  "name": "John Doe",
  "email": "john@example.com",
  "message": "I'm interested in your services",
  "source": "contact_form"
}

CRM events

Sync data when records are updated in your CRM:

{
  "event": "lead.updated",
  "lead_id": "lead_456",
  "status": "qualified",
  "score": 85
}

System monitoring

Receive alerts from monitoring systems:

{
  "alert": "high_cpu_usage",
  "server": "web-01",
  "cpu_percent": 95,
  "timestamp": "2025-01-01T10:30:00Z"
}

Security considerations

Bearer token authentication

• Always include the Bearer token in the Authorization header
• Keep your Bearer token secure and don't share it publicly

HTTPS only

• All webhook requests must use HTTPS for security
• FactBranch automatically enforces encrypted connections

Request validation

• FactBranch validates the Bearer token on every request
• Invalid or missing tokens result in 401 Unauthorized responses
• Only valid JSON payloads are accepted

Response handling

Successful requests

When your webhook receives a valid request:

• Triggers your Flow with the incoming data
• Processes data through your configured nodes
• Returns HTTP 200 OK response with the Flow execution result (the output from the last node)

Error responses

Common error responses:

• 401 Unauthorized - Invalid or missing Bearer token
• 400 Bad Request - Invalid JSON or missing Content-Type header
• 404 Not Found - Incorrect webhook URL
• 500 Internal Server Error - Flow execution error

Rate limiting

FactBranch webhook endpoints have rate limiting to prevent abuse:

• 100 requests per minute per webhook endpoint
• Exceeding limits may return HTTP 429 (Too Many Requests)
• Contact support at support@factbranch.com if you need higher limits for your use case

Troubleshooting

"401 Unauthorized" errors

• Verify you're including the correct Bearer token
• Check that the Authorization header format is: Bearer YOUR_TOKEN
• Ensure you're using the token from the correct Flow
• Make sure you're making a POST request to the correct webhook URL

"400 Bad Request" errors

• Confirm your request body is valid JSON
• Include the Content-Type: application/json header
• Check for any trailing commas or syntax errors in your JSON

"404 Not Found" errors

• Double-check your webhook URL is correct
• Ensure you're making requests to the exact URL provided
• Verify the Flow hasn't been deleted or renamed

Flow not executing

• Check that your Flow contains nodes.
• Review the Flow's node configuration for errors

External service configuration

• Verify your external service supports custom headers
• Check that it can send POST requests with JSON payloads
• Test with a tool like curl or Postman first

Best practices

Payload design

• Keep JSON payloads reasonably sized (< 1MB recommended)
• Use consistent field names and structure
• Include relevant metadata like timestamps and event types

Error handling

• Implement retry logic in your external service for failed requests
• Log webhook responses for debugging
• Have fallback procedures if webhook endpoints are unavailable

Testing

• Always test webhook integrations in a development environment first
• Use tools like ngrok for local testing during development
• Validate your JSON payloads before sending to production
